STOCK INJECTOR + UPGRADED FUEL PUMP POWER FLASH STAGES Includes: Fuel Pump for X3 Conversion, Intercooler Assembly with Fan, EVP Silicone Charge Tubes with BOV Port & Your Choice Tune Below ECU FLASH STAGE HP BOOST (LBS) WASTEGATE CRACK PRESSURE (LBS) FUEL (OCTANE) RECOMMENDED EXHAUST STAGE 1 192 16 6 91 STOCK OR AFTERMARKET STAGE…
Availability: In Stock
STOCK INJECTOR + UPGRADED FUEL PUMP POWER FLASH STAGES
Includes: Fuel Pump for X3 Conversion, Intercooler Assembly with Fan, EVP Silicone Charge Tubes with BOV Port & Your Choice Tune Below
ECU FLASH STAGE |
HP | BOOST (LBS) | WASTEGATE CRACK PRESSURE (LBS) | FUEL (OCTANE) | RECOMMENDED EXHAUST |
STAGE 1 | 192 | 16 | 6 | 91 | STOCK OR AFTERMARKET |
STAGE 2R | 196 | 17 | 8 | 91 | STOCK OR AFTERMARKET |
STAGE 3R-91 | 200 | 17.5 | 8 | 91 | STOCK OR AFTERMARKET |
STAGE 3R-93 | 205 | 18 | 8 | 93 | STOCK OR AFTERMARKET |

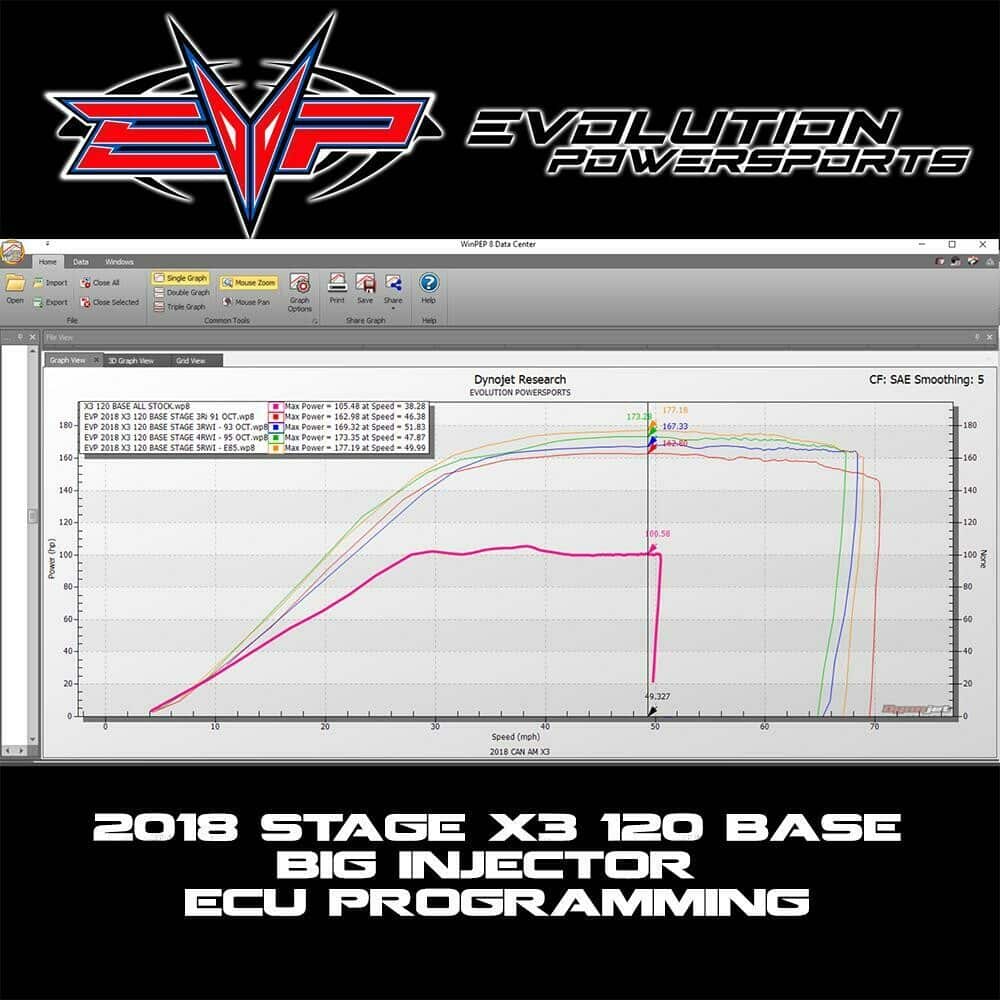

BIG INJECTOR POWER FLASH STAGES
Includes: Fuel Pump for X3 Conversion, Intercooler Assembly with Fan, EVP Silicone Charge Tubes with BOV Port, (3) Flow Matched Injectors, Wastegate Actuator & Your Choice Tune Below
ECU FLASH STAGE | HP | BOOST (LBS) | WASTEGATE CRACK PRESSURE (LBS) | FUEL (OCTANE) | RECOMMENDED EXHAUST |
STAGE 3RWI | 205 | 18 | 8 | 93 | STOCK OR AFTERMARKET |
STAGE 4RWI | 215 | 20 | 9 | 95 | STOCK OR AFTERMARKET |
STAGE 4 X100 | 225 | 22 | 11 | 100 | STOCK OR AFTERMARKET |
STAGE 5 X85 | 235 | 22 | 11 | E85 | STOCK OR AFTERMARKET |
BIG INJECTOR + MULTI-MAP STAGE 4RWI TUNE POWER FLASH STAGE
Includes: Fuel Pump for X3 Conversion, Intercooler Assembly with Fan, EVP Silicone Charge Tubes with BOV Port, (3) Flow Matched Injectors, Wastegate Actuator & Tune Below
ECU FLASH STAGE | HP | BOOST (LBS) | WASTEGATE CRACK PRESSURE (LBS) | FUEL (OCTANE) | RECOMMENDED EXHAUST |
VMAP MULTI MAP STAGE 4RWI-MM* | 200/215 | 20 | 9 | 95/91 | STOCK OR AFTERMARKET |
Take your Machine to a whole new level!
We’ve created packages that allows your X3 Turbo model (120 HP) to make the same horsepower as the X3 Turbo R model (172 hp)! This means that with tuning and a few parts, the X3 Turbo can make the same power as the X3 Turbo R, XDS, XRS and XC models. With the Turbo R fuel pump assembly installed, we can tune your machine to the same power as the big brother versions. Over 185 wheel horsepower (230 engine hp) is achievable! Various power levels and performance tunes are available for both Stock and Big Injectors, with and without a Fuel Pump. See the charts below to help choose which Stage is right for you.
SELECT YOUR YEAR
SELECT YOUR ECU POWER FLASH STAGE* (CHOOSE ONE )
*Each Tune is tailored for the specific components installed on your X3, so some Stages require additional hardware. Additional hardware will automatically be added to your order if required. If you already own additional hardware, you can delete those items from your cart prior to placing final order or call our Sales Dept @ (715) 715-3862.
*EVP Silicone Charge Tubes with BOV Port is Available in a variety of colors (Mention color choice in ‘Note’ on your Cart page before checkout)
Purchasing an EVP ECU Power Flash (Tune) requires removal your vehicle’s ECU and shipping it to our shop at: Purchasing this EVP ECU Power Flash (Tune) requires you remove your vehicle’s ECU and ship it to our shop at: 2018 Hwy 35 Somerset, WI 54025. Please print out and include a copy of your order with your shipment. Alternatively, you can Tune Yourself by purchasing a Tuning Device, options found here
STOCK INJECTOR + STOCK FUEL PUMP POWER FLASH STAGES
Includes: Intercooler Assembly with Fan, EVP Silicone Charge Tubes with BOV Port & Your Choice Tune Below
ECU FLASH STAGE |
HP | BOOST (LBS) | WASTEGATE CRACK PRESSURE (LBS) | FUEL (OCTANE) | RECOMMENDED EXHAUST |
STOCK | 120 | 8 | 3 | 91 | N/A |
STAGE S-R | 172 | 13 | 6 | 91 | STOCK OR AFTERMARKET |
STOCK INJECTOR + UPGRADED FUEL PUMP POWER FLASH STAGES
Includes: Fuel Pump for X3 Conversion, Intercooler Assembly with Fan, EVP Silicone Charge Tubes with BOV Port & Your Choice Tune Below
ECU FLASH STAGE |
HP | BOOST (LBS) | WASTEGATE CRACK PRESSURE (LBS) | FUEL (OCTANE) | RECOMMENDED EXHAUST |
STAGE 1 | 192 | 16 | 6 | 91 | STOCK OR AFTERMARKET |
STAGE 2R | 196 | 17 | 8 | 91 | STOCK OR AFTERMARKET |
STAGE 3R-91 | 200 | 17.5 | 8 | 91 | STOCK OR AFTERMARKET |
STAGE 3R-93 | 205 | 18 | 8 | 93 | STOCK OR AFTERMARKET |
BIG INJECTOR POWER FLASH STAGES
Includes: Fuel Pump for X3 Conversion, Intercooler Assembly with Fan, EVP Silicone Charge Tubes with BOV Port, (3) Flow Matched Injectors, Wastegate Actuator & Your Choice Tune Below
ECU FLASH STAGE | HP | BOOST (LBS) | WASTEGATE CRACK PRESSURE (LBS) | FUEL (OCTANE) | RECOMMENDED EXHAUST |
STAGE 3RWI | 205 | 18 | 8 | 93 | STOCK OR AFTERMARKET |
STAGE 4RWI | 215 | 20 | 9 | 95 | STOCK OR AFTERMARKET |
STAGE 4 X100 | 225 | 22 | 11 | 100 | STOCK OR AFTERMARKET |
STAGE 5 X85 | 235 | 22 | 11 | E85 | STOCK OR AFTERMARKET |
BIG INJECTOR + MULTI-MAP STAGE 4RWI TUNE POWER FLASH STAGE
Includes: Fuel Pump for X3 Conversion, Intercooler Assembly with Fan, EVP Silicone Charge Tubes with BOV Port, (3) Flow Matched Injectors, Wastegate Actuator & Tune Below
ECU FLASH STAGE | HP | BOOST (LBS) | WASTEGATE CRACK PRESSURE (LBS) | FUEL (OCTANE) | RECOMMENDED EXHAUST |
VMAP MULTI MAP STAGE 4RWI-MM* | 200/215 | 20 | 9 | 95/91 | STOCK OR AFTERMARKET |
Power Flash Options | STAGE S-R 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port, STAGE 1 Fuel Pump for X3 Conversion 2018 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port -2019 Can Am X3 172 R Intercooler Fan Upgrade, STAGE 2-R Fuel Pump for X3 Conversion 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port, STAGE 3R -91 Fuel Pump for X3 Conversion 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port, STAGE 3R-93 Fuel Pump for X3 Conversion 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port, STAGE 3R-WI Fuel Pump for X3 Conversion 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port Can Am M, STAGE 4RWL Fuel Pump for X3 Conversion 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port Can Am M, STAGE 4 X100 Fuel Pump for X3 Conversion 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port Can Am M, STAGE 5 X85 Fuel Pump for X3 Conversion 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port Can Am M, Stage 4RWi-MM Fuel Pump for X3 Conversion 2018-2019 Can Am X3 172 R Intercooler Fan Upgrade 2017-2019 Can Am Maverick X3 Silicone Charge Tubes with BOV Port Can Am MILTIMAP SWITCH |
---|---|
Choose Year | 2018, 2019, 2020, 2021 |
